Extractors Soxhlet Manufacturer,Supplier and Exporter in India
Product Code : EL-E-1610
Jlab Export is a leading Extractors Soxhlet Manufacturer,and suppliers in India

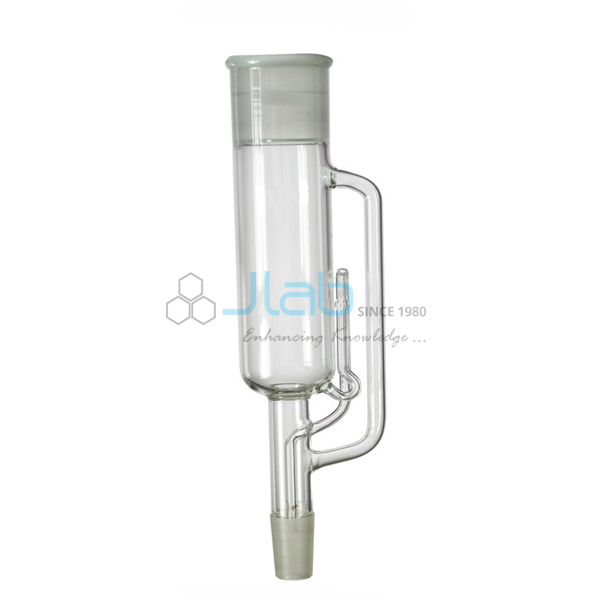

Extractors Soxhlet (code EL-E-1610) are Soxhlet extractor bodies that sit between a boiling flask and a condenser and draw the soluble part out of a solid sample by repeated washing with solvent. Nominal capacities run from 6 ml to 600 ml, with top sockets from B19 to B50 and bottom cones from B14 to B34. JLab makes this extractor range in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Joints given as | Nominal capacity: socket / cone |
| 6 ml | B19 / B14 |
| 20 ml | B24 / B19 |
| 40 ml | B29 / B24 |
| 60 ml | B34 / B24 or B34 / B34 |
| 100 ml | B34 / B34 or B40 / B24 |
| 200 ml | B50 / B24 |
| 600 ml | 75 mm flat flange / B34 |
| Quality check | Each extractor is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 50 units |
| Dispatch time | Usually 3–5 working days |
| Product code | EL-E-1610 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How the Extraction Cycle Runs
The sample sits in a thimble inside the chamber. Solvent boiling in the flask below rises as vapour, condenses above the extractor and drips onto the sample; once the chamber has filled, the solution siphons back into the flask and the cycle begins again. Because the same solvent keeps returning, a modest volume can work through the sample many times.
Capacities With More Than One Joint Set
The 60 ml extractor has a B34 socket with a B24 or B34 cone, and the 100 ml size comes as B34 socket with B34 cone or B40 socket with B24 cone. The 600 ml extractor is the odd one out: its top is a 75 mm flat flange in place of a socket, above a B34 cone.
Related Extraction Items
- Soxhlet — complete apparatus of boiling flask, extractor chamber and condenser.
- Condensers Allihn — condenser with cones from B19 to B50, matching these sockets.
- Flasks, Round Bottom, Short Neck JLab — round-bottom flasks with sockets to receive the extractor cone.
- Soxhlet Extraction Unit — heated bench unit for running several extractions side by side.
Find more in Extractors, within Lab Glassware.
Request a Quote
List each nominal capacity and joint set you want with quantities, then send it through Add To Cart or the contact page along with the consignee address.
