Metallurgical and Industrial Inspection Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-994
Jlab Export is a leading Metallurgical and Industrial Inspection Microscope Manufacturer,and suppliers in India
Metallurgical and Industrial Inspection Microscope (code EL-M-994) is a trinocular reflected-light microscope for opaque metal and industrial samples, with plan achromatic M4X to M100X oil objectives on a quintuple nosepiece, a 12 V, 50 W reflected light illuminator and an analyser attachment inside the head. JLab manufactures the microscope in Ambala, India, as part of its metallurgical range.
Specifications
| Parameter | Detail |
|---|---|
| Head | Trinocular, inclined at 45°, with inside analyser attachment |
| Focusing | Coaxial focusing knobs on both sides |
| Nosepiece | Quintuple revolving, with centring and positive click stops |
| Stage | Large coaxial mechanical, 100 x 120 mm, X-Y movement |
| Illumination | Reflected light illuminator, 12 V, 50 W |
| Objectives | Plan achromatic DIN M4X, M10X, M40X and M100X oil |
| Eyepieces | WF10X/20 and reticle eyepiece 10X/18 |
| Dark field | Plan dark field objectives |
| Quality check | Each microscope is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 5 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-M-994 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Bright Field, Dark Field and the Oil Objective
In bright field the illuminator sends light through the objective onto the sample; flat polished areas return it brightly, while scratches, pits and boundaries scatter it and look dark. The plan dark field objectives reverse this, so surface defects glow against a dark background. The M100X oil objective, used with a drop of immersion oil on the specimen, takes the WF10X eyepieces to 1000X, and the full range runs from 40X.
Measuring and Recording
Once calibrated, the 10X/18 reticle eyepiece carries a scale for measuring features on the sample, and the trinocular head leaves a tube free for a camera. Coaxial focusing knobs on both sides and a 100 x 120 mm coaxial stage position the part under the objective.
Related Inspection and Metallurgical Microscopes

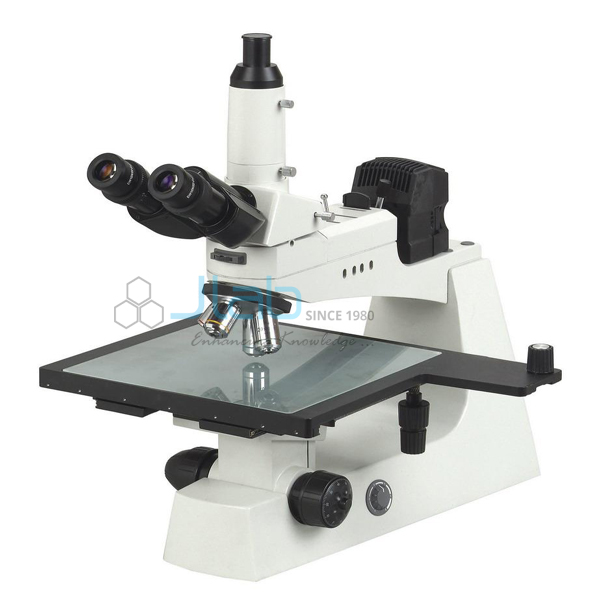

- Large Stage IC Inspection Microscope — inspection model with reflected and transmitted light for large wafers.
- Universal Trinocular Metallurgical Microscope — trinocular model with field and aperture diaphragms in the illuminator.
- Stage Micrometer — glass-disc scale for calibrating microscope measurements.
Inspection, metallurgical and ore microscopes are grouped in Microscope under Microscope Lab Equipment.
Request a Quote
Place an order with Add To Cart, or use the contact page to give the number of units and the delivery site, and to raise any questions about the objectives.
