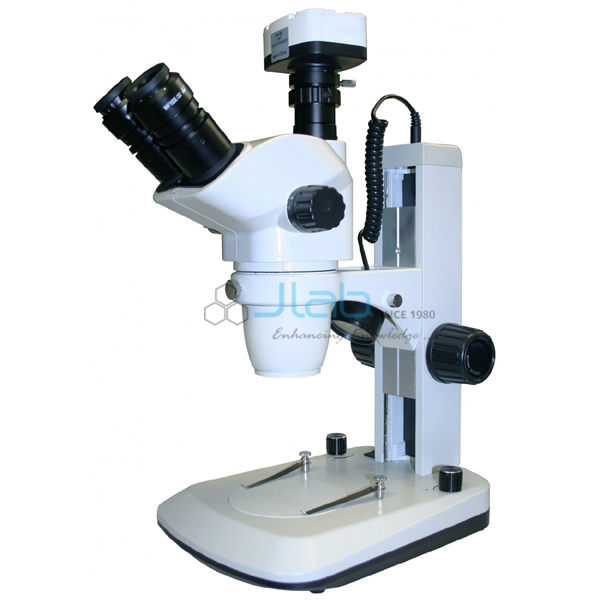

Digital Wide Field Stereo Zoom Trinocular Microscope

Digital Wide Field Stereo Zoom Trinocular Microscope

Product Code : JL-M-8128

Digital Wide Field Stereo Zoom Trinocular Microscope
Description:-
The stereo microscope offers ergonomic features such as synchronized bi-lateral inter-pupillary distance adjustments.
A fully coated optical system which provides sharp and clear imaging with extreme flatness and contrast.
With a large zoom range and long-working distance
Designed to be outfitted with a variety of lens accessories to increase or reduce magnification.
It provides the best reproduction and true color imaging.
Ideal for high-magnification, high-resolution observation in biological research, semi-conductor and other precision-oriented industries.
The trinocular model with the digital camera is excellent for photomicroscopy or use with an LCD screen.

They offer Plug-and-Play compatibility and come with user-friendly, efficient imaging software.
DN cameras are a new generation of routine cameras with high resolutions.
Plug-and-Play compatibility allows you to connect more than one camera to a PC at the same time, all you need to do is to plug it into your computer.
It is a good choice for research, medicine, education and industry applications.
Furthermore, the software allows 3rd party applications to set up and control DN cameras - which gives you more options.
Our software is free and easy to use and additional processing functions provide strong support for your scientific research.

Specification:-



Magnification

Total magnification: 6.7X~45X The magnification range can be enlarged to 3.4X~180X with auxiliary objectives and optional eyepieces

Viewing Head

Trinocular head (50%/50% light splitting ratio), 45° inclined and 360° rotatable

Interpupillary distance adjustable from 54mm-76mm

Eyepiece

Two diopter adjustment of +/-5 on both eyepieces

10X wide-field high eyepoint

Paired 10X/22mm (Optional eyepieces WF15X/16mm, WF20X/12mm, Various reticle eyepieces WF10X/22mm available, not included)

The eyepieces can be locked on with setscrews to prevent students from removing them

Zooming Body

Standard objective zooming magnification range: 0.67x ~ 4.5x, Zoom ratio: 1:6.7, parfocal, working distance 105mm

Auxiliary objectives: 0.5X/177mm(working distance), 1.5X/47mm, 2X/26mm available (not included)

Objective lens protective glass available (not included)

Working Distance

Standard working distance of 105mm, working distance range can be enlarged to 26mm~177mm with auxiliary lens

Focusing Arm

Two focusing knobs with tension adjustment, 100mm focus distance range

Heavy duty rack and pinion focusing

Stage

Includes one 95mm glass stage plate and one 95mm reversible black/white stage plate. Includes two sample clips

Locked-on stage clips

2D Travelling stage available (not included)

Illumination

Top light: diagonally adjustable top incident LED light. Brightness can be continuously adjusted independently

Bottom light: transmitted LED light. Brightness can be continuously adjusted independently

Built in illumination system allows three ways of illumination: transmitted, incident, or dual lighting.

Main On/off power switch. Besides, top and bottom lights can be switched on/off respectively with separate intensity control

Imaging

Trinocular head available 50/50 light splitting ratio, with special interface, be able to connect to digital camera, imitate CCD, digital CCD, VGA



0.5 focus adjustable C-mount (not included)

DN Series Digital Eyepiece Camera

Advanced camera control;

Capturing high quality images. Great for observing live images on your screen and still images.

Simply install the IS Capture easy to use software. Compatible with Windows XP/7 /8 (32 & 64 bits) /Linux/ Mac

Acquisition of still images and video. Available image types: JPEG, BMP, TIFF and RAW.

Extend depth of focus (Focus Stacking)

Image management and image stitching

High dynamic range (HDR) function

Fluorescence imaging settings; fluorescence combination function for still images

Live image measurements; still image measurement


Digital Camera:-

Pixel size(μm)

1.67×1.67

2.2×2.2

3.2×3.2

3.6×3.6

Effective pixels

10.0MP

5.0MP

3.0MP

1.3MP

Max. Resolution (H×V)

3664×2748

2592×1944

2048×1536

1280×1024

Scan mode

Progressive

Progressive

Progressive

Progressive

Shutter

Rolling shutter

Rolling shutter

Rolling shutter

Rolling shutter

Frame rate

3fps (3856 × 2764)

5fps (2592 × 1944)

10fps (2048 × 1536)

15 fps (1280×1024)

8fps (1832 × 1370)

21fps (1280*960)

25fps (1024 × 768)

30fps (640*480)

28fps (916 × 6804 × 4Bin)

25fps (1024 × 768)

40fps (640 × 480)



--

38fps (640 × 480)



Color depth

24bit

24bit

24bit

24bit

Exposure Control

Manual/Auto

Manual/Auto

Manual/Auto

Manual/Auto

Integration Time (S)

0.001-1

0.001-0.8

0.001-0.5

0.001-0.5

White Balance

Manual/Auto

Manual/Auto

Manual/Auto

Manual/Auto

Operating humidity

45%-85%

45%-85%

45%-85%

45%-85%

Operating system

Windows / Linux / Mac

Windows / Linux / Mac

Windows / Linux / Mac

Windows / Linux / Mac

Data interface

USB2.0/480Mb/s

USB2.0/480Mb/s

USB2.0/480Mb/s

USB2.0/480Mb/s
