Distillation Heads Manufacturer,Supplier and Exporter in India
Product Code : EL-D-1604
Jlab Export is a leading Distillation Heads Manufacturer,and suppliers in India

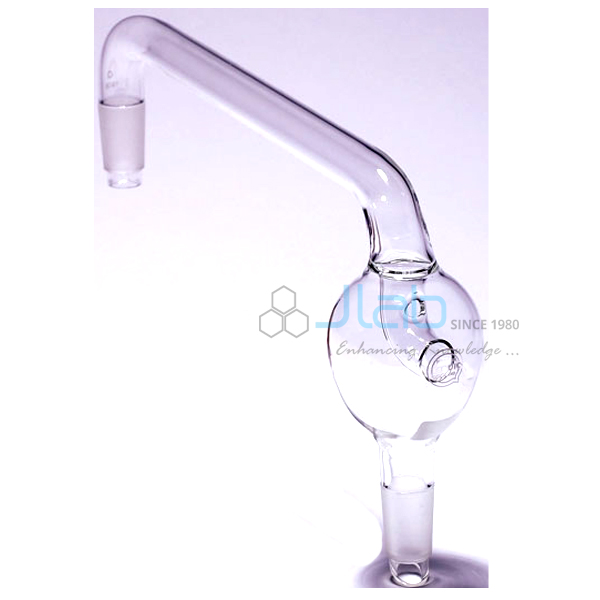

Distillation Heads (code EL-D-1604) are still heads that sit on a boiling flask, carry the thermometer and turn the vapour sideways into the condenser. Six joint combinations are offered, from an all-B10 head up to one with B24 flask and condenser cones and a B14 socket. Each head is made by JLab at Ambala in India.
Specifications
| Parameter | Detail |
|---|---|
| Joints given as | Cone to fit flask / cone to fit condenser / socket |
| Flask cone B10 | B10 / B10 / B10 |
| Flask cone B14 | B14 / B14 / B14 |
| Flask cone B19 | B19 / B19 / B14 or B19 / B19 / B19 |
| Flask cone B24 | B24 / B19 / B14 or B24 / B24 / B14 |
| Quality check | Each distillation head is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 50 units |
| Dispatch time | Usually 3–5 working days |
| Product code | EL-D-1604 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
The Three Joints on Every Head
A cone at the bottom drops into the flask, a second cone on the side arm enters the condenser, and a socket on top takes the thermometer or its adapter; the table gives the sizes in that order. The B10 and B14 heads use one size on all three joints; the B19 heads come with a B14 or B19 top socket, and both B24 heads have a B14 socket.
Matching the Head to Flask and Condenser
Start from the socket on the flask, then check the condenser inlet. A B19 flask can take a head with a B19 side-arm cone and either a B14 or a B19 top socket, and a B24 flask has a choice of B19 or B24 for the condenser cone.
Other Distillation Heads and Glassware
- Distillation Heads - Claisen, Sloping — adds a second neck to the head for another fitting.
- Distillation Heads - Splash, Sloping — stops liquid spray from the flask reaching the condenser.
- Distillation Columns, Vigreux — B24 column on which a B24-cone head can sit.
- Condensers, Liebig — straight condenser to take the side-arm cone.
The full Distillation range sits within Lab Glassware.
Request a Quote
Quote the three joint sizes of each head you want and the quantity, then send them through Add To Cart or the contact page with your delivery location.
