Student Projection Microscope Manufacturer,Supplier and Exporter in India
Product Code : EL-M-939
Jlab Export is a leading Student Projection Microscope Manufacturer,and suppliers in India

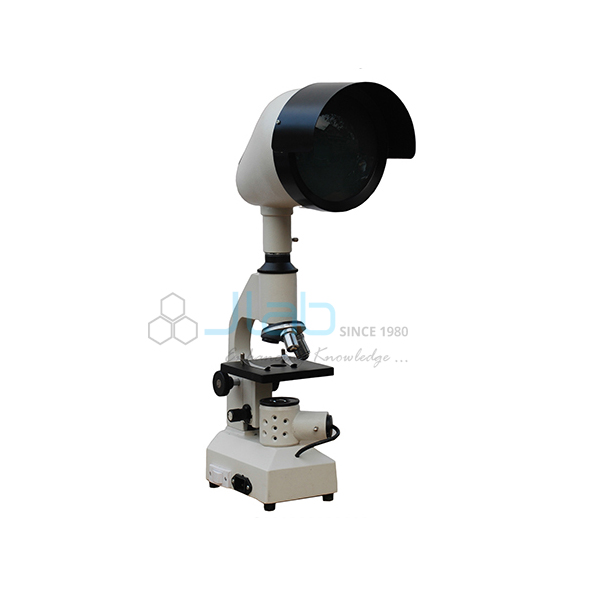

Student Projection Microscope (code EL-M-939) is a monocular microscope with a fixed straight 160 mm tube and a 150 mm glass projection screen, so one specimen can be shown to a group as well as viewed at the eyepiece. It has a triple revolving nosepiece with achromatic 4X, 10X and 40X SL objectives, Huygenian 10X and 15X eyepieces and a 20 W halogen lamp. Each projection unit is made by JLab in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Body | Monocular, fixed straight tube, 160 mm |
| Nosepiece | Triple revolving, positive click stops |
| Stage | Detachable mechanical, X-Y movement 50 x 75 mm, fully graduated vernier scale |
| Illumination | 20 W halogen lamp, 220/110 V, cooling slots |
| Objectives | Achromatic 4X, 10X and 40X SL |
| Eyepieces | Huygenian 10X and 15X |
| Projection screen | Glass, 150 mm diameter, rotates through 360 degrees |
| Total magnification | 40X to 600X |
| Quality check | Each microscope is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 5 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-M-939 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
Showing a Slide to the Class
With the image on the screen, a teacher can point out a feature to several students at once instead of checking each eyepiece in turn. The screen rotates through 360 degrees to face the group, and a darkened room makes the projected image easier to see.
Powers, Stage and Lamp
Each objective multiplied by each eyepiece gives 40X and 60X on the 4X, 100X and 150X on the 10X, and 400X and 600X on the 40X SL, whose spring-loaded front retracts if it meets the slide. The detachable mechanical stage moves the slide through 50 x 75 mm against a fully graduated vernier scale, and slots in the lamp housing let the halogen illuminator cool naturally on 220 V or 110 V mains.
Other Projection Microscopes
- Projection Microscope — projection model with the same 150 mm glass screen and 20 W halogen lamp.
- Projection Microscopes — projection model with co-axial stage drive controls.
- Blue Filter — blue filter that whitens lamp light on microscopes.
Monocular, binocular and stereo models are all in Microscope, under Microscope Lab Equipment.
Request a Quote
Send your order through Add To Cart, or state the quantity and the delivery address for the school or laboratory on the contact page.
