Analog Circuits Development Platform Manufacturer,Supplier and Exporter in India
Product Code : EL-BE-10489
Jlab Export is a leading Analog Circuits Development Platform Manufacturer,and suppliers in India
Analog Circuits Development Platform (code EL-BE-10489) is an analog electronics trainer that brings the experiments of an analog electronics laboratory onto a single platform. Students design, try out and test circuits by plugging components into a solderless breadboard, with no soldering, and every connection and control is clearly marked and conveniently placed. The platform is a JLab product, manufactured in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Circuit building | Solderless breadboard |
| Power supplies | On-board DC and AC power supplies |
| Signal sources | On-board function and modulation generators |
| Test aid | On-board continuity tester |
| Controls | On-board toggle switches and potentiometers |
| Layout and operation | Functional blocks indicated on the board mimic; self-contained and easy to operate |
| Learning support | Free e-learning course |
| Quality check | Each platform is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-BE-10489 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with Other JLab Analog Platforms?
| Model | On-board signal sources | On-board measurement and test | Other features |
|---|---|---|---|
| This platform (EL-BE-10489) | Function and modulation generators | Continuity tester | Toggle switches, potentiometers, DC and AC supplies, solderless breadboard |

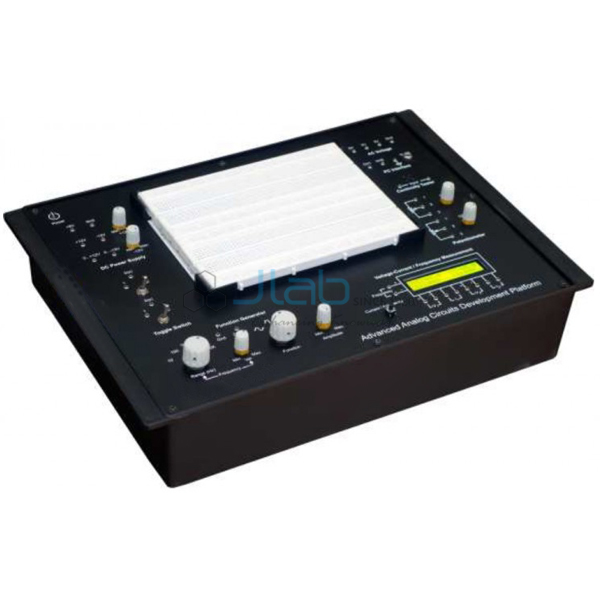

| Advanced Analog Circuits Development Platform | Function generator | Voltage, current and frequency measurement; continuity tester | PC interface; toggle switches, potentiometers, DC and AC supplies, solderless breadboard |
| Analog Digital Circuits Development Platform | Sine/square/TTL generator | Logic probe | 8-bit data switches and LED display, speaker, potentiometers, DC and AC supplies, solderless breadboard |
This platform and the Advanced model run the same experiment list. This one carries function and modulation generators, while the Advanced model pairs a function generator with on-board voltage, current and frequency measurement and a PC interface. The Analog Digital platform is the one that also takes in digital experiments.
What Is the Analog Circuits Development Platform Used For?
It is designed for performing analog electronics experiments on one platform in analog electronics laboratories, and it is also useful for building and testing circuits and for analog electronics projects while learning the subject. The experiments are diodes and light-emitting diodes in DC circuits; the half-wave and full-wave rectifier; the Zener diode as a voltage regulator; transistor series and shunt voltage regulators; the CB and CE configurations of an NPN transistor and a CE amplifier circuit; astable, monostable and bistable multivibrators using transistors; and low-pass, high-pass and band-pass filters.
What to Specify When Ordering
- Model — this platform, the Advanced Analog Circuits Development Platform or the Analog Digital version.
- Quantity — the number of platforms for the laboratory.
- Single-topic trainers — the rectifier, filter and diode trainers below are separate items that can be added to the same enquiry.
Frequently Asked Questions
Why does the platform have both AC and DC supplies?
The rectifier experiments need an AC input to convert into DC, while the transistor, regulator and multivibrator circuits are run from DC, so both kinds of supply are on the board.
What is the continuity tester used for?
It checks whether a lead, track or connection forms a complete low-resistance path. On a breadboard it is a quick way to find a broken jumper or a component leg that is not making contact before power is applied.
How do the astable, monostable and bistable multivibrators differ?
An astable multivibrator has no stable state and runs freely, giving a continuous square wave. A monostable has one stable state and produces a single timed pulse each time it is triggered. A bistable has two stable states and changes over on each trigger, acting as a basic transistor flip-flop.
Can it be used for projects as well as set experiments?
Yes. Besides its experiment list, the platform is useful for building and testing your own circuits and for analog electronics projects.
What do you need from us for an export quotation?
Tell us the quantity, the destination country and the port or city, your preferred delivery terms such as FOB or CIF, any packing or labelling needs, and the tender reference if the order is for a tender.
Who is the manufacturer of this platform?
Jain Laboratory Instruments Pvt Ltd, trading as JLab, manufactures the Analog Circuits Development Platform in Ambala, Haryana, and quotes for it directly.
OEM Manufacturer
JLab is how Jain Laboratory Instruments Pvt Ltd trades: an educational laboratory and electronics trainer manufacturer in India, incorporated in 2017, with its address on Hargolal Road, Ambala, Haryana. The analog platform is made in JLab's own works rather than resold from a trader, so schools, colleges, dealers and importers purchase directly from the factory, every unit passes a visual inspection before dispatch, and the manufacturer handles any repeat order. JLab exports worldwide and ships to buyers in every region — for example Madagascar in East Africa, Slovakia in Eastern Europe, Chad in Central Africa, Costa Rica in Central America and the Caribbean, and Japan in East Asia. Information for tender buyers is on the JLab lab tenders page.
Related Analog Electronics Trainers
- Advanced Analog Circuits Development Platform — compared above; same experiment list, with on-board measurement and a PC interface.
- Analog Digital Circuits Development Platform — compared above; one board for analog and digital experiments.
- Experimentation With Rectifiers — half-wave and full-wave (centre-tapped and bridge) rectifiers with ripple factor calculation.
- Experimentation with Active Filters — an active filter trainer with an inbuilt function generator of selectable frequency range.
- Experimentation with Diodes — V-I characteristics of silicon, Zener and light-emitting diodes, read on built-in meters.
- Digital Circuits Development Platform (8-bit data switches and LED display) — the breadboard platform for digital electronics.
See every trainer in the Basic Electronics range and the wider Electronics Lab Equipments section.
Request a Quote
Request your quotation through the Add To Cart enquiry button on this page or the contact page, saying which model you need, how many, and where they are going.
