Saw Teeth Setting Pliers Manufacturer,Supplier and Exporter in India
Product Code : EL-MWLE-9303
Jlab Export is a leading Saw Teeth Setting Pliers Manufacturer,and suppliers in India

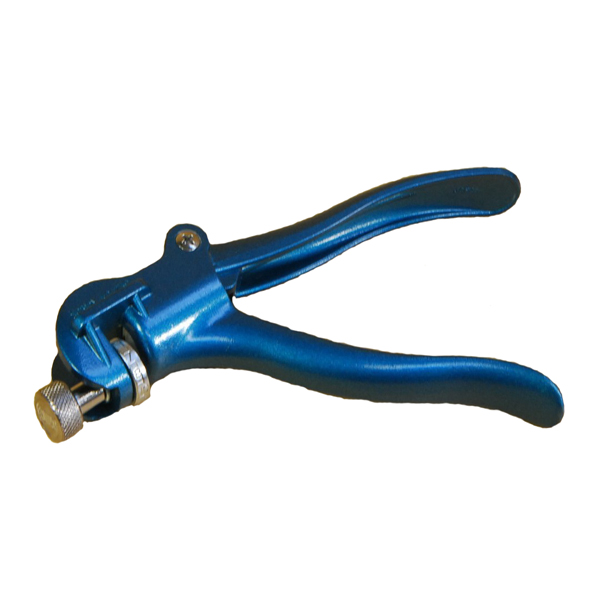

Saw teeth setting pliers bend the teeth of a saw out from the blade, alternate teeth to opposite sides. The kerf then comes out wider than the blade, so the saw does not bind in the cut. On these pliers a hardened high speed steel pin, 1.5 mm across, pushes each tooth out. The aluminium body adjusts the set from 0.7 mm to 2 mm from the blade centre.
Specifications
| Pin | Hardened high speed steel, 1.5 mm diameter |
| Blade pitch | 1.5 mm or greater |
| Set range | 0.7 mm to 2 mm from the blade centre |
| Adjustment | Fully adjustable |
| Body | Aluminium |
| Saw types | Japanese and western style saws |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 4–6 working days |
| Manufacturer | JLab (Jain Laboratory Instruments Pvt Ltd), Ambala, India |
Saw Setting Exercises for Students
Carpentry and ITI students usually set a saw after topping the teeth level and before the final filing. They hold the blade in a Saw Clamp For Filing, adjust the pliers to the amount of set wanted and press every second tooth along one side. Then they turn the saw round and set the teeth they skipped toward the other side.

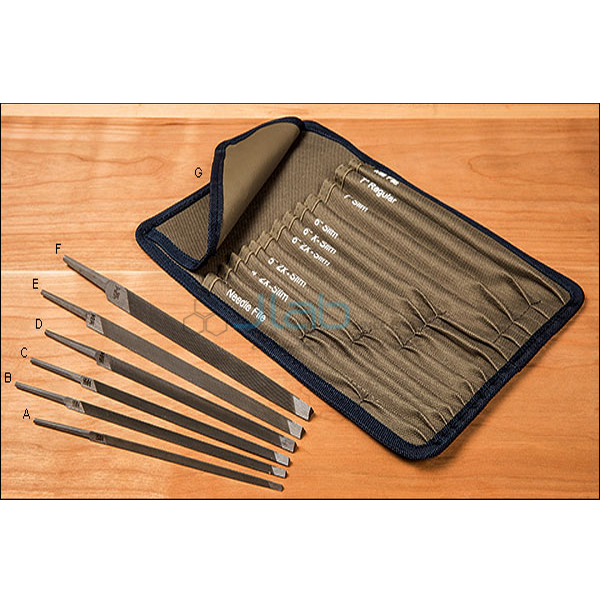

After setting, students file the teeth with the Saw Sharpening File Set and make a test cut in scrap wood. If the saw drifts to one side, that side has more set. A light stroke of a Flat File along the teeth on that side evens it out.
Frequently Asked Questions
How much set should a saw have?
Give only enough set for the saw to run freely in the wood. Fine joinery saws need very little, while saws for wet or green timber need more. These pliers adjust from 0.7 mm to 2 mm from the blade centre, so start small and test the cut.
Which saws can these pliers set?
They work with Japanese saws and with western style saws, as long as the teeth have a pitch of 1.5 mm or greater. On finer teeth, the 1.5 mm pin cannot push one tooth without catching its neighbour.
Should the saw be set before or after filing?
The usual order is to top the teeth level, set them, then file them sharp. Filing last brings every tooth back to a clean point once the set has been put in.
Why do teeth crack or break off when they are set?
Old saws with rusted or pitted plates are weak along the tooth line, and induction-hardened teeth are too hard to bend. Set only the top part of each tooth, never bend it from the gullet, and try a few teeth on an old saw first.
What is the pin made of?
The pin that pushes the teeth out is hardened high speed steel, so it keeps its shape against saw steel. The body of the pliers is aluminium, which keeps the tool light in the hand during a long setting job.
Other Saws and Sharpening Items
For a quote, use Add To Cart or send us a message through the contact page.
