Verification of Superposition Theorem Manufacturer,Supplier and Exporter in India

Product Code : EL-VONT-1128
Jlab Export is a leading Verification of Superposition Theorem Manufacturer,and suppliers in India

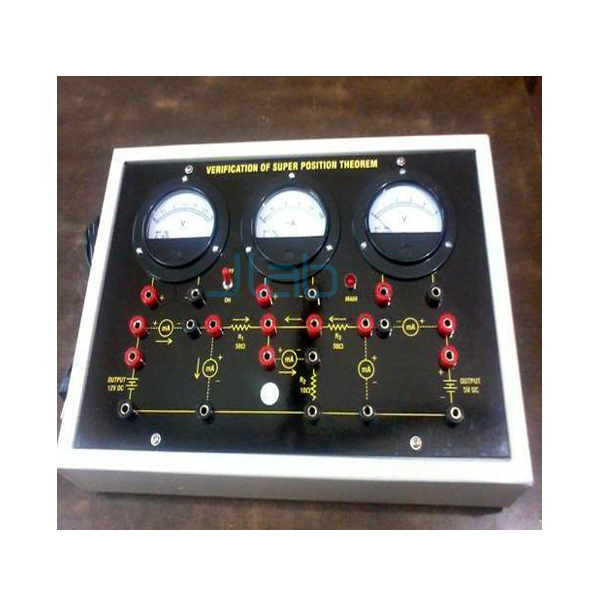

Verification of Superposition Theorem (code EL-VONT-1128) is a trainer showing that in a linear two-source circuit each branch current is the algebraic sum of the currents each source drives alone. It has two regulated DC supplies of 12 V and 5 V, three moving-coil meters and a circuit diagram printed on the front panel. It is made by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, India.

Specifications

How Does It Compare with Other JLab Network Theorem Trainers?

Pick this trainer when superposition has its own bench: it is listed with two regulated supplies at 500 mA and three meters for this one experiment. The four-theorem panels suit labs that want one unit to cover several theorems.

What Is the Superposition Theorem Trainer Used For?

Superposition is usually among the first network theorems taught in basic electrical engineering and circuit theory courses, and it needs a circuit with at least two independent sources — which is why this trainer carries two supplies. It is used in engineering and polytechnic diploma labs, B.Sc. physics and electronics practicals and ITI/TVET electrical workshops. Students wire the printed circuit, read the branch currents with both supplies connected, then repeat the readings with only the 12 V supply acting and the 5 V source replaced by a short circuit, and again with only the 5 V supply acting. Adding the two single-source readings for each branch, with their directions, should give the reading taken with both sources.

Moving-coil meters show the direction of current, so a branch current that reverses when one source acts alone deflects the pointer backwards; reverse the meter connections and record that reading as negative. Switch the supplies off before changing connections.

What to Specify When Ordering

• Quantity — the minimum order is 10 trainers.
• Which theorems you need — this superposition trainer alone, or together with the Thevenin’s, Norton’s, reciprocity and maximum power transfer trainers or a four-theorem panel.
• Mains supply at the destination and any connecting leads you want supplied, since the listing states neither.

Frequently Asked Questions

What power supplies and meters are fitted?
Two fixed-output regulated DC supplies of 12 V and 5 V at 500 mA, and three moving-coil meters. The listing does not give the meter ranges or the resistor values, so ask JLab for them before you plan the readings.

Why does a superposition trainer need two supplies?
The theorem is about circuits with more than one source: the response to all sources together equals the sum of the responses to each source acting alone. Two independent supplies let students compare the combined reading with the two single-source readings.

Can superposition be used to add up power?
No. Currents and voltages add, because the circuit is linear, but power depends on the square of the current, so the power in a resistor must be worked out from the total current, not by adding the power from each source.

What should an export enquiry include?
The quantity, destination country and port or city, preferred delivery terms such as FOB or CIF, the mains voltage at site, packing or labelling requirements, and a tender reference where there is one.

Who manufactures the superposition trainer?
JLab — Jain Laboratory Instruments Pvt Ltd — makes it at its Ambala works in Haryana, India, and supplies quotations directly as the manufacturer.

OEM Manufacturer

JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, a manufacturer of electronics and physics lab trainers in India, incorporated in 2017 and located on Hargolal Road, Ambala, Haryana. The superposition trainer comes from JLab’s own works, not from a trader, so engineering colleges, polytechnics, ITIs, dealers and importers buy it factory-direct; each unit is visually inspected before it is packed, and repeat orders and spares are handled by the maker. The company is registered under CIN U29309HR2017PTC069123 and holds MSME Udyam registration UDYAM-HR-01-0003849 as a manufacturing enterprise. JLab exports worldwide and can ship to any region — Mali in West Africa, Botswana in Southern Africa, Barbados in Central America and the Caribbean, Thailand in Southeast Asia and Cameroon in Central Africa are examples. Tender buyers can see the JLab lab tenders page.
