Water Bath 6 Hole Manufacturer,Supplier and Exporter in India
Product Code : EL-MI-8767
Jlab Export is a leading Water Bath 6 Hole Manufacturer,and suppliers in India

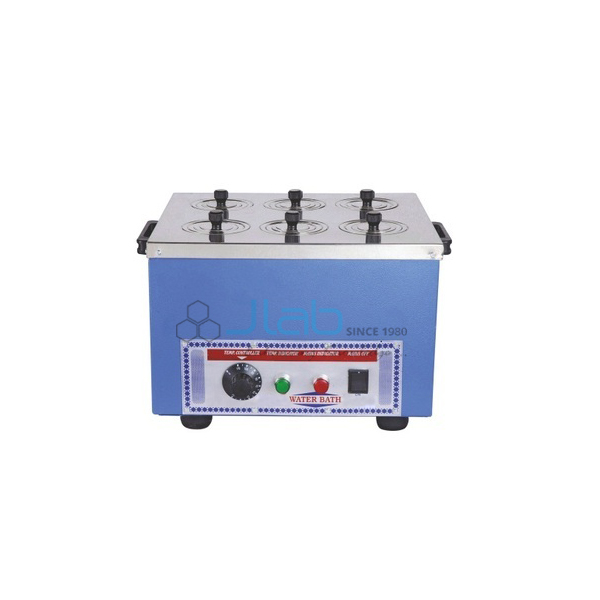

Water Bath 6 Hole (code EL-MI-8767) is a rectangular, double-walled laboratory water bath with a stainless steel inner reservoir and a stainless steel top plate holding six 7.5 cm holes and one 12.5 cm hole, each fitted with concentric rings and a lid. A capillary thermostat controls the water from ambient to 100 °C for heating and evaporation work. It is made by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Type | Rectangular laboratory water bath, double-walled construction |
| Inner reservoir | Stainless steel |
| Outer body | Mild steel |
| Insulation | Glass wool between the inner and outer walls |
| Lid openings | Six holes of 7.5 cm diameter and one hole of 12.5 cm diameter |
| Top plate and rings | Stainless steel; concentric rings with lids provided on the holes |
| Chamber size | 30 cm x 25 cm x 12 cm |
| Temperature range | Ambient to 100 °C |
| Temperature control | Capillary thermostat |
| Power supply | 230 V AC, single phase |
| Thermometer | Not included — available at extra cost |
| Quality check | Each water bath is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-MI-8767 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with Other JLab Water Baths?
| Model | Temperature control | Lid and openings | Other listed details |
|---|---|---|---|
| This water bath (EL-MI-8767) | Capillary thermostat, ambient to 100 °C | Stainless steel top plate, six 7.5 cm holes and one 12.5 cm hole with concentric rings and lids | Chamber 30 x 25 x 12 cm; glass wool insulation; 230 V AC |
| Universal Water Bath | Capillary thermostat, ambient to 100 °C, accuracy ±1 °C | Stainless steel lid with a hole for a glass thermometer | Two sizes: 12 x 9 x 7 in (750 W) and 18 x 12 x 7 in (1500 W); listed as suitable for washing Marshall specimens |
| Digital Constant Water Bath | Digital temperature controller, ambient to 100 °C, accuracy ±0.2 °C, least count 0.1 °C | Not stated | FHP motor stirrer; 18 x 12 x 10 in stainless steel chamber; 2000 W heater |
Choose this model when several vessels need to sit in the bath at once — its seven ring-fitted openings take flasks, test tubes and evaporating basins of different sizes. The Universal Water Bath suits work that needs a plain, open chamber, and the Digital Constant Water Bath suits experiments that need a digital set point and stirred water.
What Is the 6-Hole Water Bath Used For?
A laboratory water bath heats vessels gently and evenly up to the boiling point of water without a naked flame. On this bath the concentric rings are lifted out one by one until the opening matches the vessel, so a small test tube and a wide evaporating basin can be heated side by side. Typical jobs include evaporating solutions to concentrate them, warming flasks and test tubes, and heating flammable liquids safely, such as decolourising a leaf in alcohol before the iodine starch test in class 10 biology practicals. It also gives a steady temperature for enzyme experiments in class 11 and 12 biology, and for routine laboratory work in colleges and research labs.
Fill the reservoir with water before switching on — distilled water keeps scale down — and set the capillary thermostat to the temperature you need. Put a thermometer through one of the openings to check the water temperature, cover unused holes with their lids to reduce heat loss and evaporation, and top up the water during long runs. After use, switch off, let it cool, drain the reservoir and wipe it dry.
What to Specify When Ordering
- Quantity — the minimum order is 10 water baths.
- Thermometer — thermometers are supplied at extra cost; add one per bath to the enquiry if you need them.
- Power supply — the bath runs on 230 V AC single phase; check that this matches your laboratory supply.
- Vessels — add evaporating basins, flasks or test tubes to the same enquiry so each bench is ready on delivery.
Frequently Asked Questions
How many openings does the lid have?
Seven in total: six holes of 7.5 cm diameter and one larger hole of 12.5 cm diameter. Each has stainless steel concentric rings and a lid, so the opening can be adjusted to the vessel or closed off.
What temperature range does it reach, and how is it controlled?
From ambient to 100 °C, controlled by a capillary thermostat. The listing gives no control accuracy for this model; if you need a digital set point with a stirrer, compare the Digital Constant Water Bath.
Is a thermometer included?
No. Thermometers are available at extra cost and can be quoted with the bath.
What is the chamber size?
The chamber measures 30 cm x 25 cm x 12 cm, with a stainless steel reservoir inside a mild steel outer body and glass wool insulation between the two walls.
How does it differ from the Universal Water Bath?
Both use a capillary thermostat up to 100 °C. This model has a top plate with seven ring-fitted openings, while the Universal Water Bath has a stainless steel lid with a single hole for a glass thermometer and is offered in two sizes.
What information is needed for an export quotation?
Send the quantity, the destination country and port or city, your preferred delivery terms (for example FOB or CIF), whether thermometers are needed, any packing or labelling requirements, and a tender reference if there is one.
Who manufactures this water bath?
JLab — Jain Laboratory Instruments Pvt Ltd — builds it at its works in Ambala, Haryana, and quotes for it directly.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, a manufacturer of laboratory heating equipment, glassware and teaching apparatus in India, incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. The 6-hole water bath is fabricated in JLab’s own works rather than bought from a trader, so schools, colleges, research labs, dealers and importers buy it factory-direct; each bath is inspected by eye before dispatch, and repeat orders and spare parts are handled by the maker. JLab exports worldwide and ships to buyers in every region — for example Afghanistan in South Asia, Hong Kong in East Asia, Mali in West Africa, Tonga in Oceania and Ukraine in Eastern Europe. Tender buyers can find details on the JLab lab tenders page.
Related Water Baths and Accessories
- Universal Water Bath — a capillary-thermostat bath with a stainless steel lid, offered in two sizes.
- Digital Constant Water Bath — digital temperature control with a motor-driven stirrer.
- Lab Thermometer Red Alcohol Partial Immersion — a partial-immersion lab thermometer with permanently fused markings for checking the bath temperature.
- Silica Basins — translucent silica evaporating basins for evaporating solutions to dryness.
See more in the Measuring Instruments range or the wider Indian Instruments section.
Request a Quote
Quotes come direct from the manufacturer. Use the Add To Cart enquiry button on this page, or send the quantity (minimum 10 units), whether you need thermometers, and your delivery location through the contact page.
