8-Bit Analog to Digital Converter Manufacturer,Supplier and Exporter in India
Product Code : EL-DET-1521
Jlab Export is a leading 8-Bit Analog to Digital Converter Manufacturer,and suppliers in India

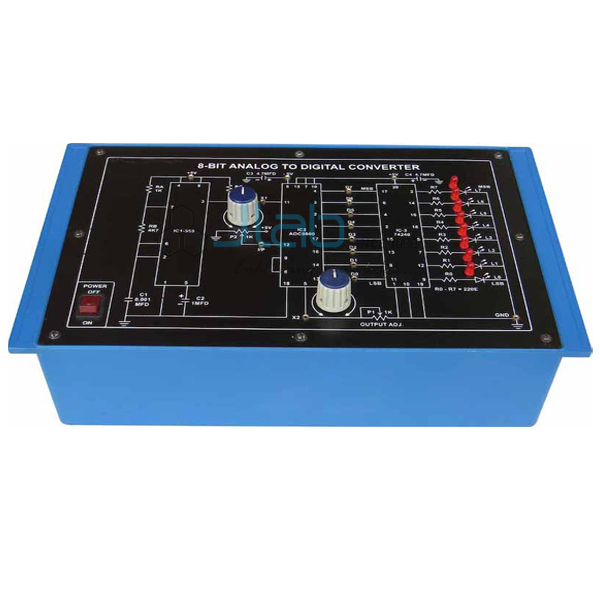

8-Bit Analog to Digital Converter (code EL-DET-1521) is a training board for studying how an analog signal is converted into an 8-bit digital word by the successive approximation method. It is built around an ADC 0800 A to D converter IC, with a 555 timer IC, a 74240 buffer IC and LEDs that show the status of the conversion. It is made by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Experiment | Conversion of an analog signal to an 8-bit digital signal |
| Conversion method | Successive approximation |
| A to D converter | ADC 0800 IC |
| Timer | Timer IC 555 |
| Buffer | Buffer IC 74240 |
| Indicators | LEDs for visual indication of status |
| Built-in power supply | ±5 V DC at 50 mA, IC regulated, internally connected |
| Mains controls | Mains ON/OFF switch, fuse and jewel light |
| Supply required | 230 V ±10% at 50 Hz AC mains |
| Panel terminals | Terminals and sockets on the panel for connections and observation of waveforms |
| Operating instructions | Detailed instructions giving the object, theory, design procedures, report suggestions and book references |
| Other apparatus required | Digital multimeter, 3¾ digit |
| Quality check | Each board is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-DET-1521 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with the JLab 4-Bit Analog to Digital Converter?
| Board | Digital output | Built-in DC supplies | Main conversion parts | Readout and other apparatus |
|---|---|---|---|---|
| 8-Bit Analog to Digital Converter (EL-DET-1521) | 8 bits | ±5 V DC at 50 mA | ADC 0800 converter IC (successive approximation), 555 timer IC, 74240 buffer IC | Status LEDs; a 3¾-digit digital multimeter is the other apparatus required |
| Analog to Digital Converter | 4 bits | +5 V, −5 V, +10 V and a 0–15 V variable supply | Voltage comparator, 4-bit binary ripple counter, timer and logic gates | Built-in voltmeter, seven-segment displays and LEDs; requires no other apparatus |
The 4-bit board teaches the conversion principle and the digital voltmeter with its own meter and displays, while this board shows a real converter IC producing an 8-bit word by successive approximation.
What Is the 8-Bit ADC Board Used For?
Successive approximation is one of the most widely used conversion methods in analog to digital converter ICs because it balances speed and resolution. The converter holds a trial binary value, starting with only the most significant bit set, compares the analog equivalent of that value with the input, and keeps or clears the bit depending on which is larger; it then moves to the next bit, so an 8-bit result is found in eight comparisons. With this board students see that process carried out by the ADC 0800 and follow the status on the LEDs, which makes it a practical 8-bit ADC trainer.
What to Specify When Ordering
- Resolution — this 8-bit successive-approximation board, or the 4-bit Analog to Digital Converter for the basic conversion principle.
- Quantity — the number of boards for your electronics lab.
- Measuring instrument — the board needs a 3¾-digit digital multimeter as other apparatus; it is a separate instrument.
Frequently Asked Questions
How does successive approximation work?
The converter tests one bit at a time, from the most significant to the least significant. For each bit it compares a trial value with the input and keeps the bit only if the trial does not exceed the input, so after one comparison per bit the stored word is the digital equivalent of the input.
What resolution does an 8-bit converter give?
An 8-bit word has 256 possible codes, so the input range is divided into 256 steps — sixteen times finer than a 4-bit converter.
What power supply does the board use?
It runs from 230 V ±10% at 50 Hz AC mains, and the ±5 V DC supply for its circuits is built in and IC regulated.
What information is needed for an export quotation?
Send the number of boards, the destination country and port or city, your preferred delivery terms (for example FOB or CIF), any packing or labelling requirements, and the tender reference if the order is for a tender.
Who manufactures the 8-Bit Analog to Digital Converter?
Jain Laboratory Instruments Pvt Ltd, trading as JLab, makes it at its works in Ambala, Haryana, India, and quotes for it directly.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, an Indian manufacturer of electronics trainers and laboratory equipment, incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. The 8-bit ADC board is assembled at JLab’s own works and not bought from a trader, so colleges, polytechnics, dealers and importers buy it direct from the factory, every board is visually inspected before dispatch, and repeat orders and spares are dealt with by the manufacturer. JLab exports worldwide and ships to buyers in every region — for example the USA in North America, the Maldives in South Asia, Namibia in Southern Africa, El Salvador in Central America and the Caribbean, and Jordan in the Middle East. Tender details are on the JLab lab tenders page.
Related Converter Trainers
- Analog to Digital Converter — a 4-bit board with its own voltmeter and seven-segment displays for the conversion principle and the digital voltmeter.
- 8-Bit Multiplying Digital to Analog Converter — the reverse conversion at 8 bits, with an output that represents the product of the digital input and a reference.
- Digital to Analog Converter — a 4-bit binary weighted ladder network read on a 0–5 V voltmeter.
See the full Digital Electronics Trainer range or all Electronics Lab Equipments.
Request a Quote
Use the Add To Cart button to request a quotation for this board, or send the quantity, the delivery destination and any other converter boards you need through the contact page.
