8 Directional Vertical Milling Manufacturer,Supplier and Exporter in India

8 Directional Vertical Milling

Product Code : EL-CTM-9072
Jlab Export is a leading 8 Directional Vertical Milling Manufacturer,and suppliers in India

This bench-size vertical milling machine has an adjustable throat and a 70 x 330 mm table with two T-slots. The spindle runs from 70 to 2800 rpm on a 90 V DC motor with electronic speed control. The control accepts any mains input from 100 to 240 V AC at 50 or 60 Hz. Travel is 229 mm in X, 178 mm in Y and 137 mm in Z.

Specifications

Travel (X / Y / Z)229 / 178 / 137 mm
Max clearance, table to spindle229 mm
ThroatAdjustable
Table70 x 330 mm, 2 T-slots for hold-down
Spindle10 mm hole through, 3/4-16 TPI nose thread
Spindle speed70–2800 rpm, continuously variable
Motor90 V DC with electronic speed control
Input supplyAny 100–240 V AC, 50 or 60 Hz, converted automatically
Minimum order quantity1 unit
Dispatch timeUsually 14–18 working days
ManufacturerJLab (Jain Laboratory Instruments Pvt Ltd), Ambala, India

Workshop Practice on the Vertical Mill

Students begin by squaring the head to the table. A Dial Gauge mounted on the spindle is swept across the table, and the head is set until the reading matches on both sides. They then face a small block, cut a slot and drill a row of holes. Steel and larger cutters need a lower speed, and brass, aluminium and small drills a higher one.

Slot positions are marked out beforehand with a Universal Surface Gauge. Finished parts are measured with an External Micrometer and a Dial Caliper. Setting the adjustable throat in and out shows the class how the spindle’s reach from the column changes for a wider part.

Frequently Asked Questions

What does 8 directional mean on this mill?
The name refers to the extra ways the head can be positioned beyond the X, Y and Z feeds. Work can then be reached at angles and further from the column. On this model the throat is adjustable, which moves the spindle nearer to or further from the column.

Should I climb mill or conventional mill on this machine?
Use conventional milling for most cuts on a manual mill like this one. In climb milling the cutter tends to pull the work along with it, and any play in the feed screws lets the table lurch into the cut. Keep climb milling for a light finishing pass once that play has been taken up.

Does it need a special power supply?
No. The 90 V DC motor runs through an electronic speed control that converts any input from 100 to 240 V AC at 50 or 60 Hz. The mill works from an ordinary mains socket.

How is the spindle speed set?
Speed is continuously variable from 70 to 2800 rpm on the electronic control. Lower speeds suit steel and larger cutters, and higher speeds suit small drills and soft metals.

What holds the tools in the spindle?
Drill chucks and tool adapters screw onto the 3/4-16 TPI thread on the spindle nose. A 10 mm hole runs right through the spindle.

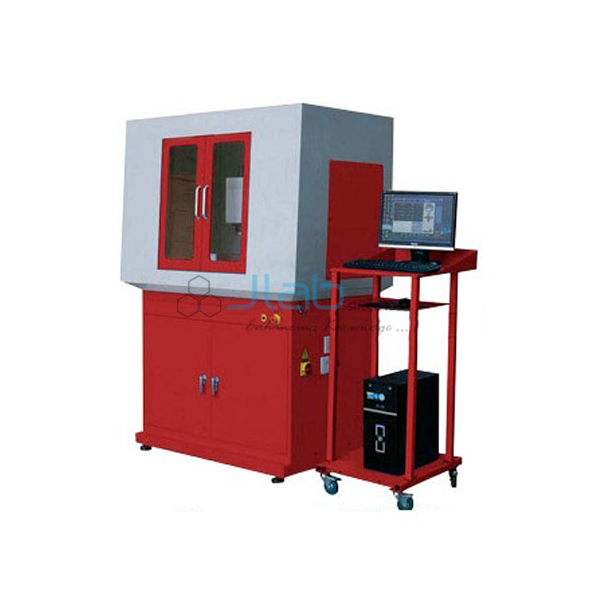

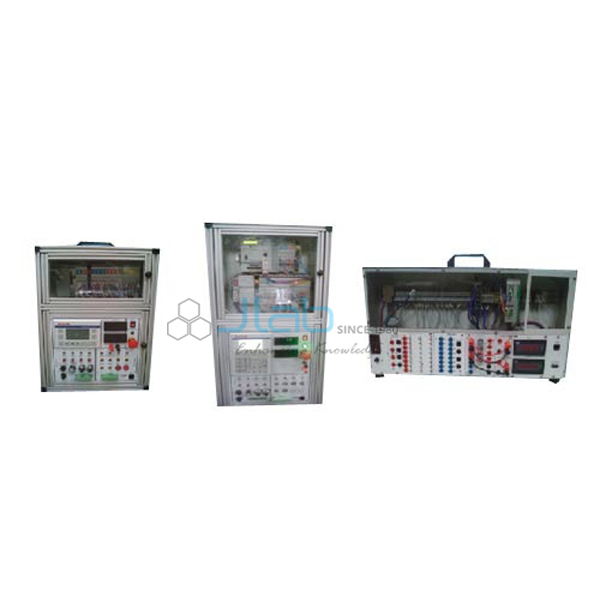

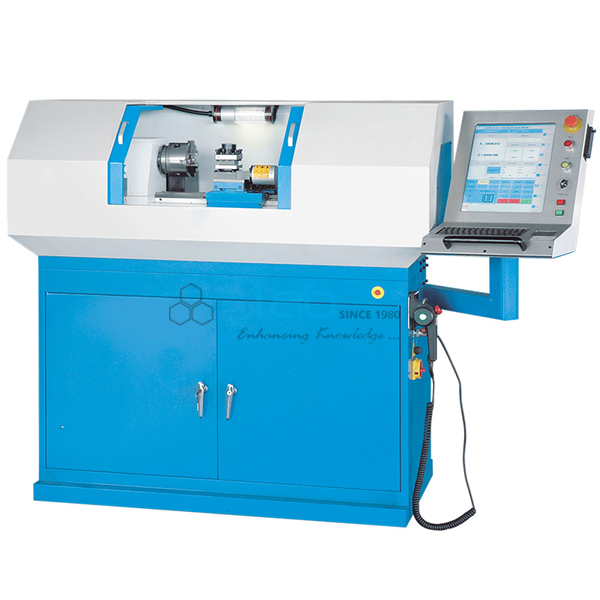

Other Small Mills and Trainers

For a quote, use Add To Cart or send us a message through the contact page.
