CNC Milling Machine Table Model Manufacturer,Supplier and Exporter in India

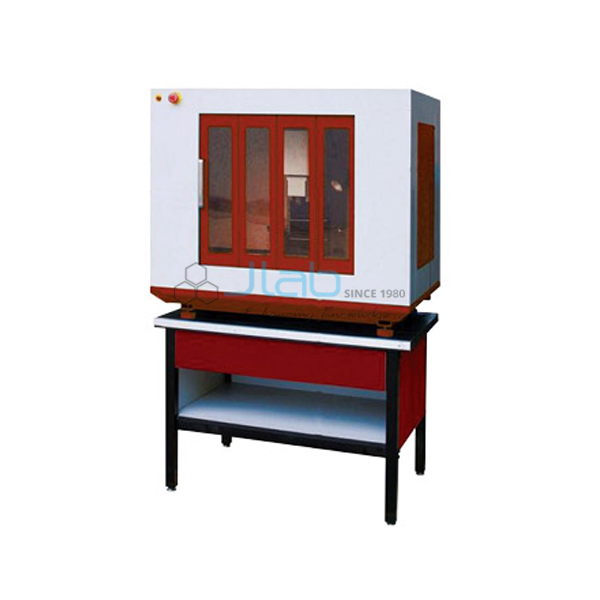

CNC Milling Machine Table Model

Product Code : EL-CTM-9014
Jlab Export is a leading CNC Milling Machine Table Model Manufacturer,and suppliers in India

Sized for a bench rather than the workshop floor, this table model CNC mill brings three-axis programming and cutting into a classroom or small lab. Its 400 x 145 mm table has three 8 mm T-slots and takes up to 20 kg. The 500 W spindle runs from 100 to 7000 rpm, and the axes travel 260, 110 and 180 mm.

Specifications

Worktable size400 x 145 mm
T-slots3, each 8 mm wide
Maximum table load20 kg
Travel (X / Y / Z)260 / 110 / 180 mm
Drilling capacity10 mm
Spindle500 W motor, 100–7000 rpm
Axis motors (X / Y / Z)1.35 / 1.35 / 2.2 Nm
Axis speed500 mm/min feed, 2 m/min maximum
Positioning precision0.015 mm
Machine size (L x W x H)1040 x 860 x 940 mm, 178 kg net
Minimum order quantity1 unit
Dispatch timeUsually 14–18 working days
ManufacturerJLab (Jain Laboratory Instruments Pvt Ltd), Ambala, India

Lab Exercises on the Table Model Mill

Because the machine is compact, a small group can stand round it while the teacher explains each block of a program. A common first job is engraving initials or a simple outline in a plastic or aluminium blank. Students write the G-code, preview the path in a simulator and dry run it with the cutter raised before the first real cut.

Work and tool offsets are set in the same way as on a larger mill. The Z zero is found by lowering the cutter onto a blade of the Feeler Gauge and adding the blade thickness. A second exercise drills a hole pattern with drills from the HSS Universal Drill Bit Set, keeping to the 10 mm capacity. Step heights on the finished part can then be checked on a surface plate with the Vernier Height Gauge.

Table Model or Floor Model

The table model trades size for convenience. It has a shorter table, less Z travel and a smaller spindle motor than the floor model, but its spindle reaches a higher top speed. That suits the small end mills and engraving cutters used in most training jobs, and the machine weighs far less.

Frequently Asked Questions

How big a hole can this mill drill?
The drilling capacity is 10 mm. Bigger holes are usually milled by circular interpolation, where an end mill follows a G02 or G03 path round the edge of the hole.

Why do small end mills break on this mill?
Small cutters break when they take too wide or too deep a cut, or when chips pack into a slot. They also snap when they stick out too far from the holder. Keep the tool short in its holder, take lighter passes and clear the chips. A feed too high for the spindle speed also overloads each tooth.

Why does the spindle run up to 7000 rpm?
Small cutters need a high spindle speed to reach a useful cutting speed at the edge. The top of the range serves small end mills and engraving cutters, while the low end suits drilling and larger tools.

Will a program from a bigger mill run on this one?
Standard moves such as G00, G01, G02 and G03 work the same way, but the program must fit within this machine’s travel and suit its 500 W spindle. Check the limits in simulation and lighten the feeds or depth of cut where needed.

Other Bench and Floor CNC Mills

For a quote, use Add To Cart or send us a message through the contact page.
