Hydraulic Trainer Kit Manufacturer,Supplier and Exporter in India
Product Code : EL-CTM-9062
Jlab Export is a leading Hydraulic Trainer Kit Manufacturer,and suppliers in India

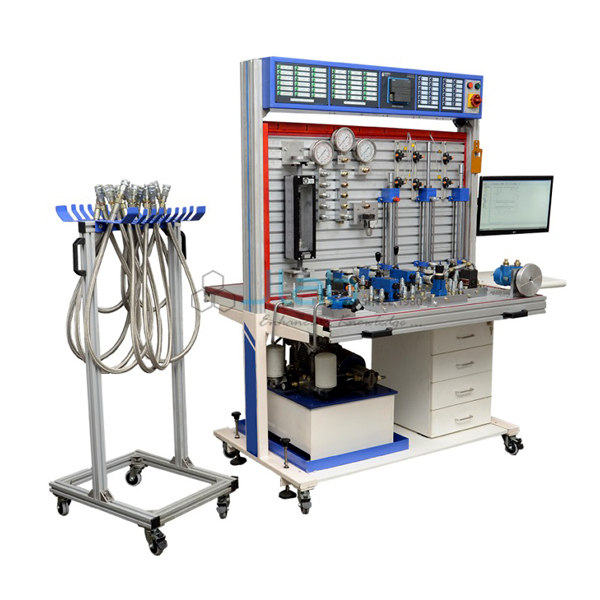

Mounted on a mobile trolley, this hydraulic trainer kit carries its own gear-pump power unit and tank. Its valves, cylinders and hydraulic motor join with quick-coupling hoses. Students build each circuit on the frame, from setting the relief valve to meter-in, meter-out and regenerative circuits. A PLC with software adds programmed control.
Specifications
| Mounting | Mobile trolley frame on caster wheels |
| Power unit | Gear pump driven by a single-phase flange-mounted electric motor through bell housing and flexible coupling |
| Tank | With filter and breather |
| Directional control | 4/3 way manually operated directional control valve |
| Pressure valves | Pressure relief valve, pressure sequence valve |
| Flow and check valves | Flow control valve, needle valve, check valve, pilot operated check valve |
| Actuators | Single-acting cylinder, double-acting cylinder, hydraulic motor |
| Connections | Hoses with quick couplings, pressure gauges |
| Control | PLC with software and help file, control panel for student-built circuits |
| Add-on | Pneumatically operated models, supplied separately |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 14–18 working days |
| Manufacturer | JLab (Jain Laboratory Instruments Pvt Ltd), Ambala, India |
Hydraulic Circuit Practicals
The experiment list starts with pressure build-up: students load the pump against the relief valve and read the gauge as they set it. Next they run the single-acting cylinder, the double-acting cylinder and the hydraulic motor through the 4/3 way valve. Sequencing circuits follow, where the sequence valve holds back the second actuator until pressure shows the first has finished its stroke.
Speed control comes next. A meter-in circuit throttles oil going into the cylinder, and a meter-out circuit throttles oil leaving it. A bleed-off circuit sends part of the pump flow straight back to the tank. The regenerative circuit routes rod-end oil back to the cap end for a faster extension stroke. The sequence and relief valves on the Transparent Hydraulic Components set show how a spring holds each one shut until the pressure rises. The Basic Hydraulic Trainer covers meter-in, meter-out and bleed-off circuits too.
Frequently Asked Questions
Why is the pump noisy or the cylinder jerky?
Usually air has got into the oil. A low oil level, a loose fitting on the suction side or a blocked suction filter lets air in, and the pump then knocks or whines. Top up the tank, check the filter and breather, and cycle the cylinder slowly a few times to work the air out.
What is the difference between meter-in and meter-out speed control?
Meter-in places the flow control on the oil entering the cylinder. Meter-out places it on the oil leaving, which keeps the cylinder from running ahead when the load pulls on it. Both are built on this kit, along with bleed-off.
Does the kit need a three-phase supply?
No three-phase supply is needed for the pump. It is driven by a single-phase, flange-mounted electric motor through a bell housing and flexible coupling.
Can students design their own circuits?
Yes. Students lay out their own circuits from the control panel, with every component within reach on the trolley. Quick couplings make each change fast. The modular layout also runs simple mechanisms.
Can pneumatics be added to the same training?
Yes. Pneumatically operated models can be ordered as an extra. They let a class compare oil and compressed-air circuits that do the same job.
