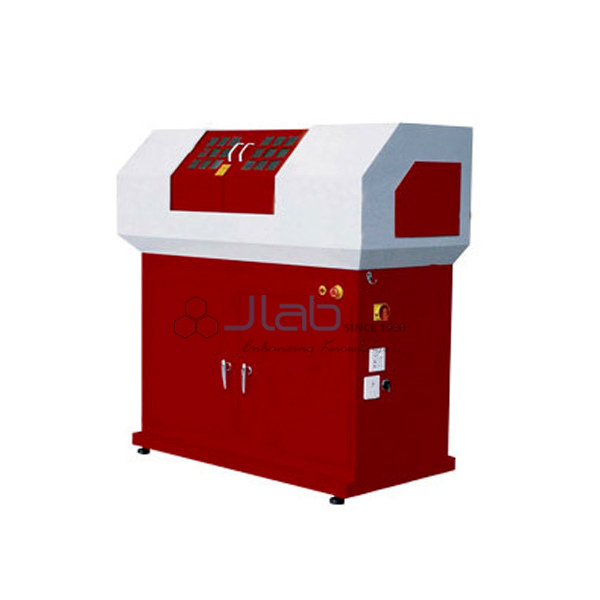

CNC Lathe Machine Floor Model

Product Code : EL-CTM-9020
Jlab Export is a leading CNC Lathe Machine Floor Model Manufacturer,and suppliers in India

Two programmed axes, a 4-station turret and a 1 kW spindle make this floor-standing lathe a teaching machine for CNC turning. It swings 250 mm over the bed and 110 mm over the carriage, takes 450 mm between centres and turns from 100 to 3000 rpm. The X axis moves 180 mm and the Z axis 320 mm.

Specifications

Swing over bed / carriage250 / 110 mm
Distance between centres450 mm
Bed width135 mm
Travel (X / Z)180 / 320 mm
Spindle1 kW main motor, 100–3000 rpm
Tool turret4 station, 360 degree indexing
Tailstock travel50 mm
Axis motors and speed4 Nm, 500 mm/min feed, 2 m/min maximum
Precision (position / repeat / turret)0.015 / 0.01 / 0.005 mm
Machine size (L x W x H)1460 x 760 x 1450 mm, 440 kg net
Minimum order quantity1 unit
Dispatch timeUsually 14–18 working days
ManufacturerJLab (Jain Laboratory Instruments Pvt Ltd), Ambala, India

Turning Practicals for Students

Students usually start with a turning program for a stepped shaft with a chamfer and an end radius. On a lathe, X sets the diameter and Z the length, so G01 moves cut the steps and G02 or G03 cuts the radius. The program is checked in simulation and then dry run with the turret clear of the bar.

Each of the four turret stations gets its own tool offset, set by touching the tool on a faced end and on a turned diameter. Before the first cut, run-out of the bar in the chuck is checked with a Dial Gauge. Finished diameters are measured with an External Micrometer and lengths with a Vernier Caliper. Students compare the readings with the drawing and adjust the wear offsets for the next part.

Turret and Tailstock

The turret indexes through 360 degrees and returns to each station within 0.005 mm. A roughing tool, a finishing tool, a grooving tool and a parting tool can stay set up together, so one program runs a complete part. The tailstock has 50 mm of travel to support longer work between centres.

Frequently Asked Questions

What size of work can this lathe turn?
It swings 250 mm over the bed and 110 mm over the carriage, with 450 mm between centres. The swing over the carriage is the practical limit for long work, because that work has to pass over the cross slide.

Why does a CNC lathe need only X and Z axes?
The tool moves across the work on X and along it on Z. Those two axes, with straight and arc moves, are enough to cut diameters, faces, tapers, radii and grooves on a part turning in the spindle.

What do the positioning and repeat figures mean?
Positioning precision of 0.015 mm is how close an axis comes to a commanded point. Repeat positioning of 0.01 mm is how closely it returns to the same point each time, which matters most when students turn a batch.

How does the floor model differ from the table lathe?
The floor model has more swing over the bed, longer X and Z travel and a 1 kW main motor. The table lathe is smaller and lighter, for benches where floor space is short. Both carry a four-station turret.
