Digi Matic Caliper Manufacturer,Supplier and Exporter in India
Product Code : EL-PLEA-13375
Jlab Export is a leading Digi Matic Caliper Manufacturer,and suppliers in India

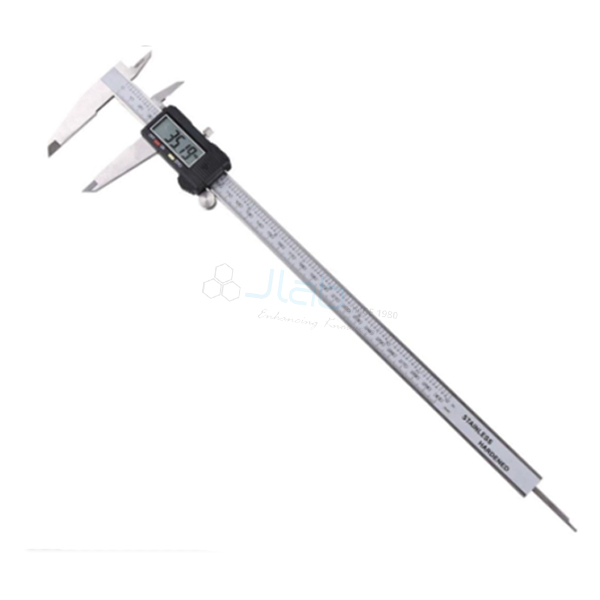

Digi Matic Caliper (code EL-PLEA-13375) is a stainless steel digital caliper with a 0–300 mm range and an LCD readout, used to measure outside and inside diameters, depths and steps. A thumb roller moves the slider, an on/off button controls the battery-powered display, and the caliper has SPC data output. JLab supplies this Digimatic caliper from Ambala in its fitted case.
Specifications
| Parameter | Detail |
|---|---|
| Brand | Digimatic |
| Material | Stainless steel |
| Measuring range | 0–300 mm |
| Measurements | Outside diameter, inside diameter, depth and step |
| Display | LCD |
| Controls | Thumb roller, on/off button |
| Power supply | Battery |
| Data output | SPC |
| Case | Fitted case |
| Quality check | Each caliper is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 1 unit |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-PLEA-13375 |
| Supplied by | Jain Laboratory Instruments Pvt Ltd (JLab), Ambala, India |
Four Measurements From One Slider
The large outside jaws close on a shaft or plate for an outside diameter or thickness, while the small upper jaws open against the wall of a bore for an inside diameter. Sliding the jaws apart also pushes the thin rod out of the end of the beam, so a depth is read by resting the beam end on the rim and running the rod down to the bottom. For a step height, the rear faces of the fixed jaw and the slider rest on the two levels. Each result appears on the LCD, so no vernier graduations have to be lined up.
Using the SPC Output and Looking After the Caliper
The SPC data output lets readings be passed to a compatible recorder or computer for statistical process control instead of being written down by hand. Move the slider with the thumb roller rather than by pushing the jaws, switch the display off after use to save the battery, and return the caliper to its fitted case between sessions.
Related Measuring Instruments

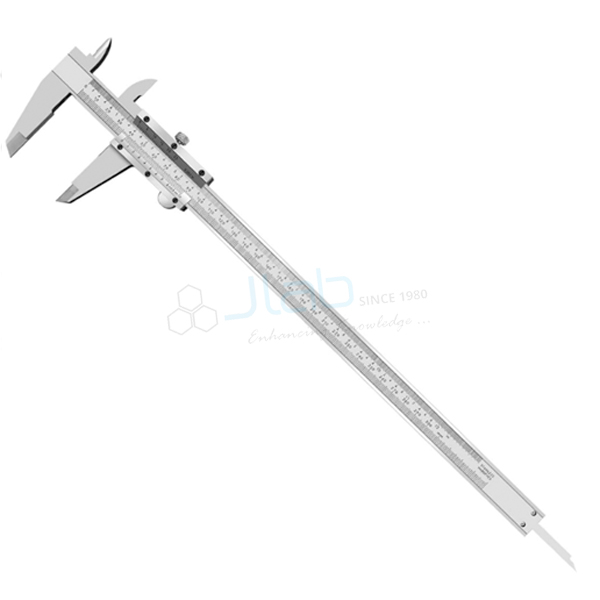

- Vernier Caliper 0-300 mm — same range and OD, ID, depth and step work, read on a vernier scale.
- Vernier Caliper 0-200mm — shorter stainless steel vernier caliper with a lock screw on the sliding jaw.

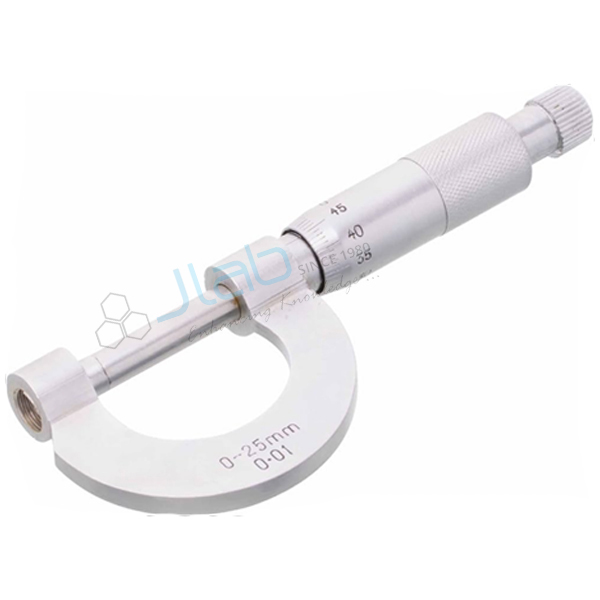

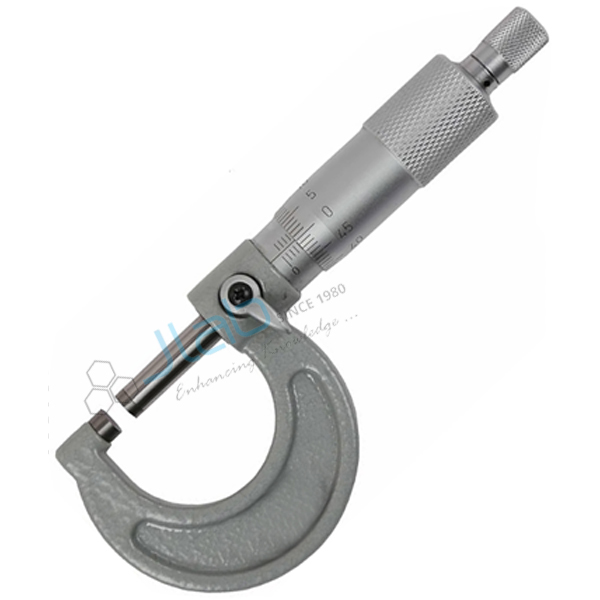

- Micrometer Screw Gauge in mm — ratchet-stop screw gauge for small diameters and thin sheets.
