Embedded Board Manufacturer,Supplier and Exporter in India
Product Code : EL-PET-10190
Jlab Export is a leading Embedded Board Manufacturer,and suppliers in India

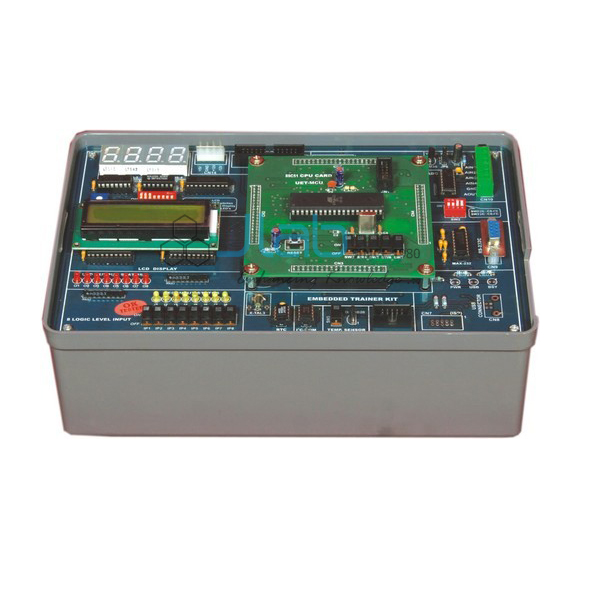

Embedded Board (code EL-PET-10190) is a microcontroller trainer for embedded-systems practice, built around a Philips 89C61X2 microcontroller with its input, output, display, converter and sensor interfaces already on the board. JLab (Jain Laboratory Instruments Pvt Ltd, Ambala, India) supplies it to schools, colleges and dealers.
Specifications
| Parameter | Detail |
|---|---|
| Microcontroller (CPU) | Philips 89C61X2 |
| Programming | ISP (in-system programming) facility |
| Inputs | 8 input switches |
| Outputs | 8 LEDs |
| Displays | 16x2 LCD; 4-digit seven-segment display |
| I2C device | 24C512 |
| Analog interface | 8-bit ADC and DAC |
| Sensor | Temperature sensor |
| External interface | 24 I/O lines on a 26-pin FRC connector |
| Built-in power supply | ±12 V and +5 V |
| Quality check | Each board is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-PET-10190 |
| Supplied by | Jain Laboratory Instruments Pvt Ltd (JLab), Ambala, India |
What Is the Embedded Board Used For?
It is used to learn how a microcontroller is programmed and connected to real devices. Simple routines can be tried first on the switches and LEDs; the ADC, DAC and temperature sensor then bring analog signals into the exercises, and the 24C512 gives practice with I2C, the two-wire serial bus widely used for links between chips.
Frequently Asked Questions
What does the ISP programming facility do?
In-system programming loads a program into the microcontroller while it stays on the board, so code can be changed and retested without removing the IC.
What is the 26-pin FRC connector for?
It brings 24 I/O lines out for external interface circuits. FRC stands for flat ribbon cable, and the connector takes a ribbon-cable plug.
How does it differ from the Microcontroller Board (LED Variant)?
Their displays differ: this board has a 16x2 LCD and a four-digit seven-segment display; the LED variant has a six-digit seven-segment LED display. Both have built-in ±12 V and +5 V supplies.
Who supplies the Embedded Board?
Jain Laboratory Instruments Pvt Ltd (JLab), Ambala, Haryana, India.
Supplier
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, a supplier of electronic lab instruments and laboratory equipment in India, incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. It offers this board alongside the trainers it builds itself and quotes directly to schools, colleges, dealers and importers. Shipping is worldwide, to every region — Brunei in Southeast Asia, Guinea in West Africa, Iceland in Northern Europe, Morocco in North Africa and Mongolia in East Asia are examples. Tender details: JLab lab tenders page.
Other Development Boards
- Microcontroller Board (LED Variant) — 25-key hexadecimal keyboard; two 8255s, an 8253 and an 8251.
- FPGA Development Board — on-board ISP programmer for piggyback modules, 4x4 matrix keyboard and stepper motor.
- Microprocessor Board (LCD Variant) — an 8085 trainer with an ASCII keyboard and backlit alphanumeric LCD.
- DSP Development Board — USB-based programming, codec, SDRAM and flash ROM.
