Understanding Digital Logic Circuits Manufacturer,Supplier and Exporter in India
Product Code : EL-BE-10488
Jlab Export is a leading Understanding Digital Logic Circuits Manufacturer,and suppliers in India

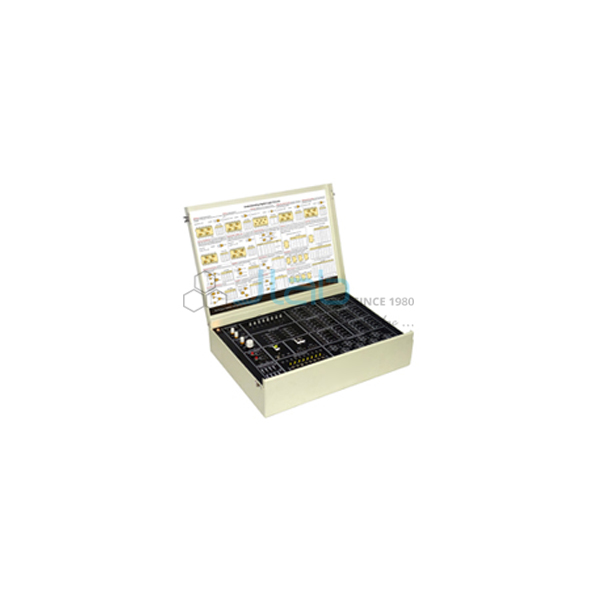

Understanding Digital Logic Circuits (code EL-BE-10488) is a digital logic trainer whose on-board logic circuits are drawn on the panel with their logic symbols and schematic diagrams, so students study each circuit by making connections to it directly on the board. It is meant for learning how basic gates, universal gates and other logic circuits work. JLab produces the trainer at its Ambala works in India.
Specifications
| Parameter | Detail |
|---|---|
| On-board circuits | Logic circuits indicated with their logic symbol or schematic diagram on the board mimic |
| Data switches | 8-bit, TTL |
| Clock and pulse inputs | Pulser switches; on-board pulse generator (TTL) |
| Output displays | 8-bit bicolour LED display; BCD to seven-segment display |
| Test aid | Logic probe |
| IC mounting | ZIF sockets |
| Input resistors | Pull-up resistors |
| Power | On-board DC power supplies; self-contained and easy to operate |
| Layout | All connections and controls clearly marked and conveniently located |
| Quality check | Each trainer is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-BE-10488 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
What Is Understanding Digital Logic Circuits Used For?
The trainer serves digital electronics laboratories, and it is also handy for building and testing circuits and for digital electronics projects while the subject is being learnt. Its experiments are the operation and truth tables of the NOT, AND, OR, NAND and NOR gates; the RS, D and JK flip-flops and their truth tables; logic algebra; applications of logic gate circuits; JK flip-flops used as an up-down counter; D flip-flops used as a shift register; the implementation of simple logic designs; and digital combinational logic circuits.
What to Specify When Ordering
- Quantity — how many trainers the laboratory needs.
- Companion boards — the gate, flip-flop and counter trainers linked below are separate items that can go on the same enquiry.
- Tender reference — if the purchase is against a tender, quote its number.
Frequently Asked Questions
What are the ZIF sockets for?
A zero insertion force (ZIF) socket clamps an IC's pins with a lever, so a chip can be put in and taken out without pressing or prising it. Students can change ICs repeatedly without bending pins.
Why are pull-up resistors provided?
A pull-up resistor holds a logic input at the high level when nothing else is driving it. Without one, an unconnected input can float between levels and give unreliable truth-table results.
Which logic levels do the inputs use?
TTL. Both the 8-bit data switches and the on-board pulse generator are TTL, so the input signals match standard TTL logic circuits.
How does it compare with Experimentation with Logic Gates?
Experimentation with Logic Gates is a gate trainer for the AND, OR, NOT, NAND, NOR, XOR and XNOR truth tables, powered by a +5V SMPS adaptor, with links made by patch cords. Understanding Digital Logic Circuits also takes students on to the RS, D and JK flip-flops and their use as counters and shift registers, with ZIF sockets and on-board DC supplies.
What information speeds up an export quotation?
The number of trainers, the delivery country and port or city, the trade term you prefer (FOB or CIF, for instance), any packing or labelling instructions, and the tender reference where relevant.
Who manufactures Understanding Digital Logic Circuits?
JLab (Jain Laboratory Instruments Pvt Ltd) makes the trainer in Ambala, Haryana, and handles the quotation itself as the maker.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, a maker of electronics trainers and laboratory equipment for education in India, incorporated in 2017 and sited on Hargolal Road, Ambala, Haryana. The company is registered under CIN U29309HR2017PTC069123 and holds MSME Udyam registration UDYAM-HR-01-0003849 as a manufacturing enterprise. This trainer is built in JLab's own works instead of being bought from a trader, so colleges, schools, dealers and importers get it straight from the source, each unit is visually inspected before dispatch, and repeat supplies come from the manufacturer. JLab exports worldwide and can serve every region — Kenya in East Africa, Libya in North Africa, Belgium in Western Europe, Japan in East Asia and Namibia in Southern Africa, for example. The JLab lab tenders page has tender information.
Related Logic Trainers
- Experimentation with Logic Gates — the gate trainer compared above.
- Training Board for Gates — OR, NOR, NOT, AND and EX-OR functions built from universal NAND gates.
- Training Board of Flip Flops — six kinds of flip-flop constructed from on-panel NAND gates and an inverter, triggered by a manual pulser.
- Logic Training Board on Counters and Shift Registers — five J-K master-slave flip-flops for wiring ripple, synchronous, ring and Johnson counters and shift registers.
- Digital Work Station — a graphical LCD lists its experiments and draws the gate-level diagram of the one chosen.
- Digital Circuits Development Platform (8-bit data switches and LED display) — a solderless breadboard platform for building digital circuits from components.
Browse the Basic Electronics range or the complete Electronics Lab Equipments section.
Request a Quote
Use the Add To Cart enquiry button or the contact page to request a quotation, with the quantity and the place the trainers are to be delivered.
