Woodworkers Table Saw Machine Manufacturer,Supplier and Exporter in India

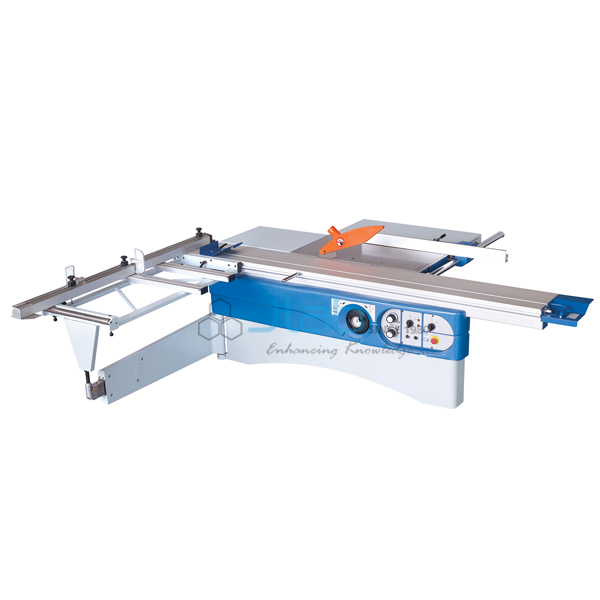

Woodworkers Table Saw Machine

Product Code : EL-WWM-8620
Jlab Export is a leading Woodworkers Table Saw Machine Manufacturer,and suppliers in India

Two blades work in line on this woodworkers table saw. A small scoring saw, 120 mm across, cuts a shallow groove in the underside of the board, and the main saw follows to cut it through. The main blade can be up to 350 mm, and the panel rides on a sliding worktable 3000 or 3200 mm long. It cuts 95 mm deep with the blade upright and 65 mm at 45 degrees.

Specifications

Main saw bladeUp to 350 mm dia, on a 30 mm spindle
Main saw motor4–5.5 kW
Main saw spindle speed4200/5500 rpm
Saw spindle tilt0–45 degrees
Maximum cutting thickness95 mm with the blade upright, 65 mm at 45 degrees
Scoring (lining) saw120 mm dia, 22 mm spindle, 8000 rpm
Scoring saw motor0.75 kW
Scoring saw height adjustment0–5 mm
Sliding worktable length3000/3200 mm
Minimum order quantity1 unit
Dispatch timeUsually 14–18 working days
ManufacturerJLab (Jain Laboratory Instruments Pvt Ltd), Ambala, India

Workshop Practice in Panel Cutting

Furniture students cut a sheet of laminated board into the parts of a small cabinet from a cutting list. They mark sizes with a Tape Measure, cut each part with the panel clamped on the sliding table, and check the corners with a Square. The parts are then joined with dowels set out on the Dowel Master.

A second exercise shows what the scoring saw is for. Students cut one strip with the scorer lowered out of the board and one with it raised, then compare the bottom edges. They also tilt the main saw to 45 degrees and cut mitred corners for a box.

Frequently Asked Questions

What does the scoring saw do?
It turns in the opposite direction to the main saw and cuts a shallow groove in the underside of the panel just ahead of it. The main blade then exits into that groove, so laminate and veneer on the lower face do not chip.

How is the scoring saw set?
Raise it, within its 0–5 mm range, just far enough to cut through the surface layer. Its groove must sit exactly under the main saw kerf. Make a test cut in scrap and look at both bottom edges before cutting good board.

What is the deepest cut it makes?
With the blade upright it cuts stock up to 95 mm thick. With the saw tilted to 45 degrees the limit is 65 mm. A smaller main blade gives a shallower cut than the full 350 mm size.

Why use a sliding worktable for panels?
The panel stays clamped on the moving table while it passes the blade, instead of being pushed across a fixed top. That keeps long cuts straight and square. A table 3000 or 3200 mm long carries a full sheet in one pass.
