70 MHz Digital Storage Oscilloscope Manufacturer,Supplier and Exporter in India
Product Code : EL-DSO-1535
Jlab Export is a leading 70 MHz Digital Storage Oscilloscope Manufacturer,and suppliers in India

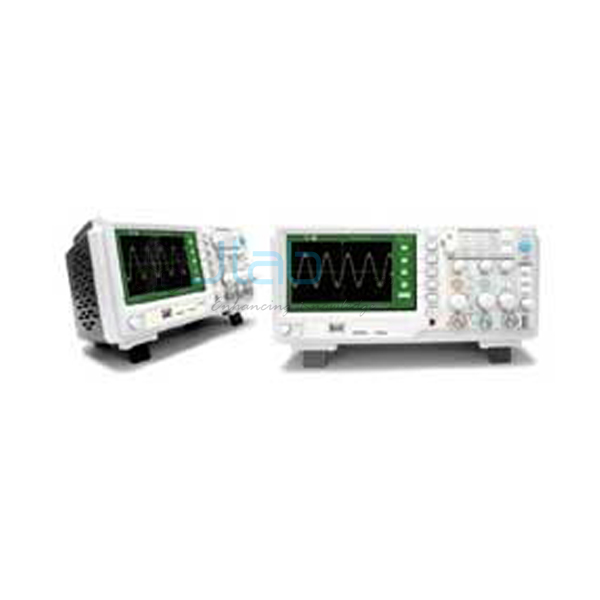

70 MHz Digital Storage Oscilloscope (code EL-DSO-1535) is a two-channel DSO for electronics lab and test benches that combines everyday waveform capture with pass/fail testing and a split-screen FFT display. It is made by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, India.
Specifications
| Parameter | Detail |
|---|---|
| Bandwidth | 70 MHz |
| Channels | 2 (dual channel) |
| Real-time sampling rate | 2 GSa/s |
| Memory depth | 24k |
| Display | Colour TFT LCD, 7 inch |
| Trigger modes | Edge, pulse, video, slope, alternative, delay |
| Ports | Front and back USB host/device; GPIB |
| Analysis functions | Digital filter, waveform recorder, pass/fail |
| Automatic measurements | 32 parameters |
| Cursors | Manual, track and auto modes |
| FFT display | Channel waveform and its FFT on a split screen |
| User interface | Pop-up menus; multiple languages; multilingual online help |
| Build | Compact and convenient to carry |
| Quality check | Each oscilloscope is visually inspected before dispatch |
| Pack quantity | Each (sold individually) |
| Minimum order quantity | 10 units |
| Dispatch time | Usually 7–10 working days |
| Product code | EL-DSO-1535 |
| Manufacturer | Jain Laboratory Instruments Pvt Ltd (JLab) — OEM |
| Country of origin | India (made in Ambala, Haryana) |
How Does It Compare with the 60 MHz and Four-Channel Models?
| Model | Bandwidth | Channels | Real-time sampling | Memory depth | Screen |
|---|---|---|---|---|---|
| This model (EL-DSO-1535) | 70 MHz | 2 channels | 2 GSa/s | 24k | 7 inch |
| Digital Storage Oscilloscope Dual Channel | 60 MHz | 2 channels | 500 MSa/s | 4K | 5.7 inch |
Both two-channel models share the same trigger modes, USB and GPIB ports and analysis functions, so the choice comes down to speed and size: this model has the wider bandwidth, the faster sampling, the deeper memory and the larger screen. If you need more than two inputs, the Digital Storage Oscilloscope Four Channel keeps the same bandwidth and sampling figures but has four independent channels.
What Is the 70 MHz Digital Storage Oscilloscope Used For?
A digital storage oscilloscope records a signal as a set of samples, which means a trace can be stopped, measured, saved and compared with a later one. On two channels, typical bench tasks include measuring the phase shift across an RC network, checking a rectifier’s input against its output, or comparing a transmitted signal with the received one on a communication trainer.
For deeper analysis, the digital filter cleans up a noisy trace so the underlying waveform is easier to read, and the waveform recorder stores a run of successive traces that can be stepped through afterwards — handy for catching a signal that changes only now and then.
What to Specify When Ordering
- Model — this 70 MHz two-channel oscilloscope, or the four-channel or 60 MHz models compared above.
- Quantity — the number of instruments needed, for example per lab bench or per training station.
- Other instruments — function generators, frequency counters and other electronic lab instruments are separate items that can be added to the same enquiry.
Frequently Asked Questions
What trigger modes does it offer?
Six: edge, pulse, video, slope, alternative and delay. Edge triggering covers most everyday work; the pulse, slope and delay modes help pick out a particular event in a complex signal, and alternative triggering keeps two unrelated signals steady on screen at the same time.
What connections are on the instrument?
USB host/device ports at the front and the back, plus GPIB for linking the oscilloscope into a computer-controlled test set-up.
How many measurements can it make automatically?
Thirty-two waveform parameters are measured automatically. For readings of your own, the cursors can be placed by hand, made to track the waveform, or set automatically.
How are the settings and help organised?
Settings open in pop-up menus, the interface can be switched between several languages, and multilingual online help is built in.
What details should an export enquiry include?
Give the quantity, the country and the port or city of delivery, the delivery terms you want (for example FOB or CIF), any packing or labelling instructions and, for a tender, its reference.
Who manufactures this oscilloscope?
It is manufactured by Jain Laboratory Instruments Pvt Ltd (JLab) at its works in Ambala, Haryana, which also quotes for it directly.
OEM Manufacturer
JLab is the trading name of Jain Laboratory Instruments Pvt Ltd, a maker of electronics, physics and engineering lab equipment in India, incorporated in 2017 and based on Hargolal Road, Ambala, Haryana. The oscilloscope is produced in JLab’s own works rather than bought from a trader, which means universities, training institutes, dealers and importers buy from the manufacturer and can return to it for repeat orders and after-sales support. JLab exports worldwide and ships to buyers in every region — for example Eswatini in Southern Africa, Jordan in the Middle East, Morocco in North Africa, Mozambique in East Africa and Costa Rica in Central America and the Caribbean. Information for tender buyers is on the JLab lab tenders page.
Related Electronics Test Instruments
- Digital Storage Oscilloscope Four Channel — a 70 MHz model with four independent channels.
- Digital Storage Oscilloscope Dual Channel — the 60 MHz two-channel model compared above.
- Digital Storage Oscilloscope 40MHz — a two-channel model with an external trigger input.
- Function Generator 2 MHz — a sine, square, triangle, ramp and pulse signal source.
- Frequency Counter 2.4GHz — a two-channel frequency counter with an 8-digit LED display.
The complete Digital Storage Oscilloscopes range is part of Electronics Lab Equipments.
Request a Quote
Press Add To Cart to send an enquiry from this page, or use the contact page; mention the model, how many you need and where they should be delivered.
